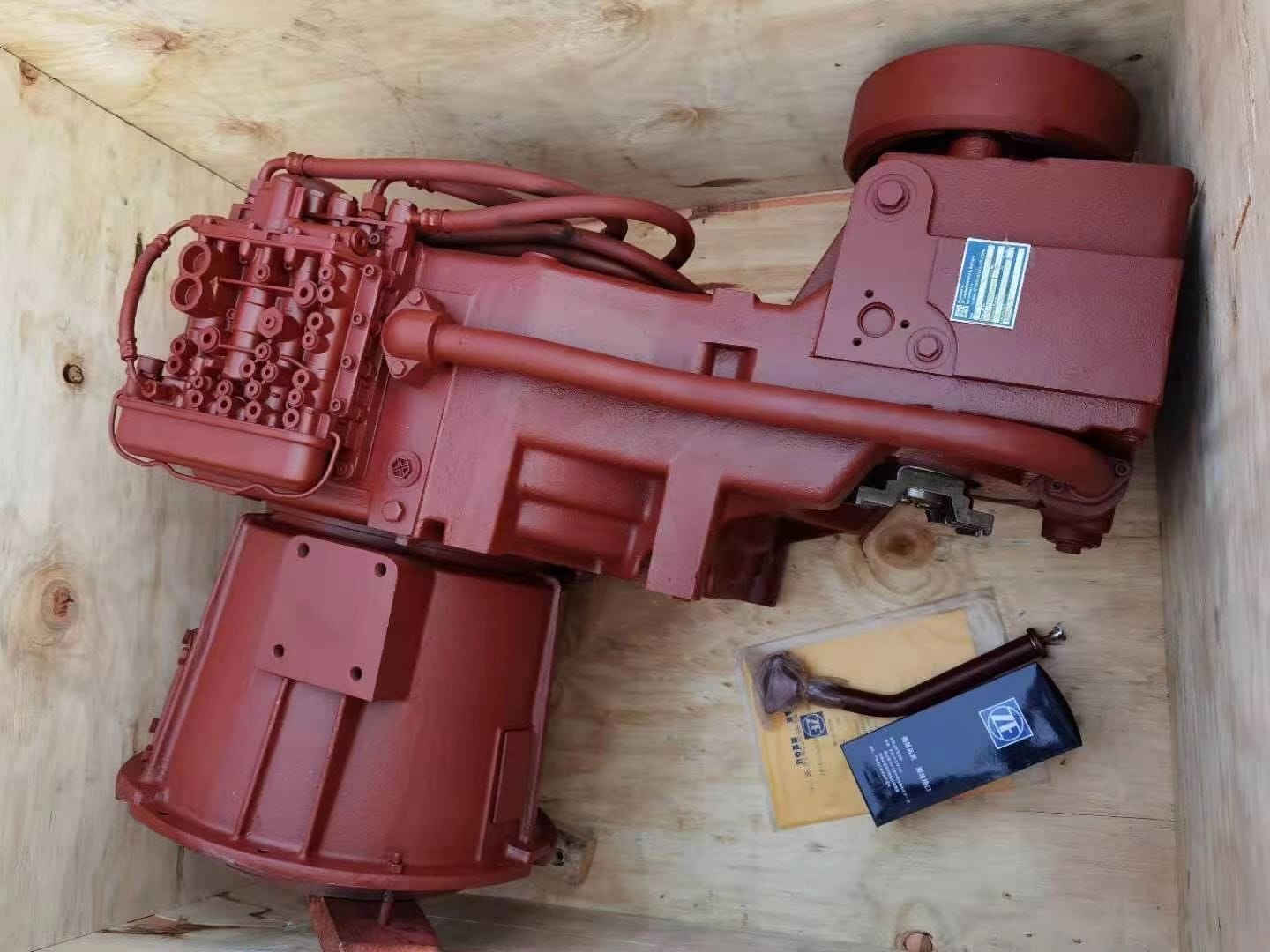

High Quality ZF 4WG200 TRANSMISSION ASSEMBLY 4644 024 228
Part No.: 4644 024 228
Part Name:TRANSMISSION ASSEMBLY
Weight: 500 kgs
Stock:full
Delivery time:2–3 days
TEL:8618866186393
https://www.facebook.com/sdlgchinaloaders
High Quality ZF 4WG200 TRANSMISSION ASSEMBLY 4644 024 228
| Tube | 4644 231 179 |
| Washer | 4642 331 216 |
| Screw | 0636 010 089 |
| Dipstick | 4644 231 086 |
| Plate | 4642 331 056 |
| Pilar | 4644 206 035 |
| Screw | 0636 101 478 |
| Lock plate | 4644 306 399 |
| Solenoid valve | 0501 313 375 |
| Screw | 0737 835 153 |
| O’ring | 0634 306 202 |
| O’ring | 0634 306 523 |
| Hose | 0750 147 257 |
| Hose | 0750 147 208 |
| Hose | 0659 160 025 |
| Hose | 0750 147 036 |
| Hose | 0750 147 117 |
| Plug | 0647 842 509 |
| Housing | 4644 301 391 |
| Spring (brake) | 0501 300 460 |
| Screw | 0899 318 771 |
| Screw | 0899 318 769 |
| Brake cam | 0899 202 439 |
| Washer | 0501 300 407 |
| Lock ring | 0630 501 018 |
| Washer | 0730 003 505 |
| Snap Ring | 0730 513 181 |
| Thrust washer | 0730 150 759 |
| Thrust washer | 4644 303 534 |
| Thrust washer | 4644 303 529 |
| Thrust washer | 4642 308 555 |
| Thrust washer | 0730 150 779 |
| Thrust washer | 4644 308 265 |
| Piston | 4644 351 070 |
| Piston | 4644 353 062 |
| O clutch disc | 0501 309 329 |
| O clutch disc | 0501 309 330 |
| I clutch disc | 4644 308 329 |
| I clutch disc | 4644 308 330 |
| I clutch disc | 4642 308 331 |
| I clutch disc | 4642 308 330 |
| I clutch disc | 4642 308 332 |
| Bracket (Disc Carrier Ass’y) | 4644 252 098 |
| Seal kit (ZF Transmission) | 4WG200/6WG200 |
| Needle Sleeve | 0635 303 203 |
| Needle Sleeve | 0635 303 205 |
| Torque converter | 4168 034 034 |
| Flange | 4644 303 389 |
| Gear | 4644 308 587 |
| Needle bearing | 0735 358 069 |
| Sealing ring | 0750 115 109 |
| Roller | 0750 119 048 |
| Sealing ring | 0750 111 231 |
| Sealing ring | 0750 111 116 |
| Shaft | 4644 302 188 |
| 10C0694 （1pc） +66C2286 （2pcs） | 10c0160 Cylinder |
| Gear | 4464 252 097 |
| Gear | 4644 308 630 |
| Axle | 4644 352 062 |
| Axle | 4644 353 058 |
| Solenoid | 0501 313 375 |
| Input Gear | 4644 302 206 |
| SHIM | 0730 108 160 |
| DRIVEN GEAR | 4644 311 117 |
| SHAFT | 3846 44311196 |
| DRIVEN GEAR | 4644 311 118 |
| COVER | 4644 311 121 |
| Needle Sleeve | 0635 303 104 |
| Gear | 4644 303 279 |
| OUTPUT SHAFT | 4633 303 216 |
| Neddle bearing | 0735 358 069 |
| Thrust washer | 4644 303 529 |
| Thrust washer | 0730 150 759 |
| roller bearing | 0750 119 100 |
High Quality ZF 4WG200 TRANSMISSION ASSEMBLY 4644 024 228
